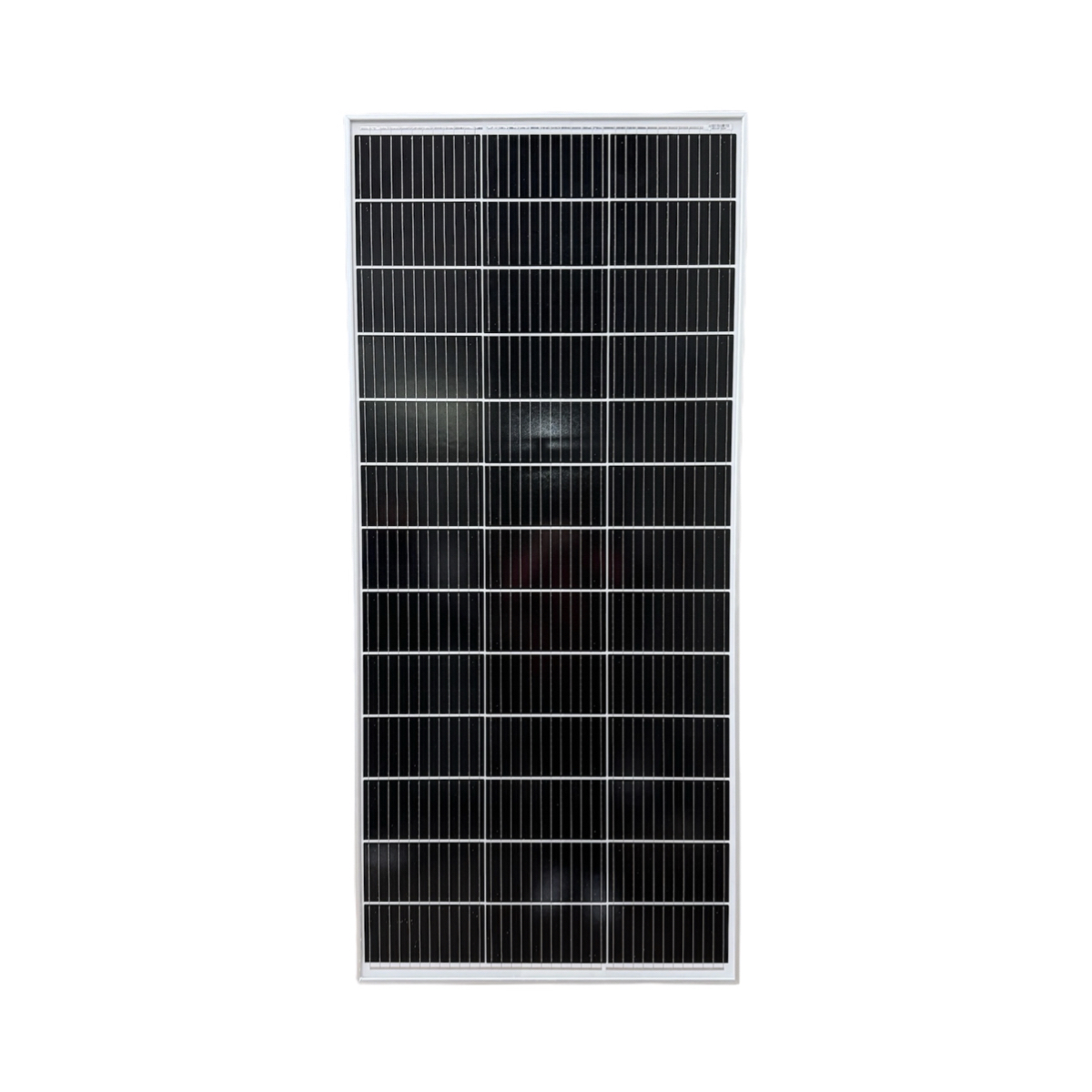

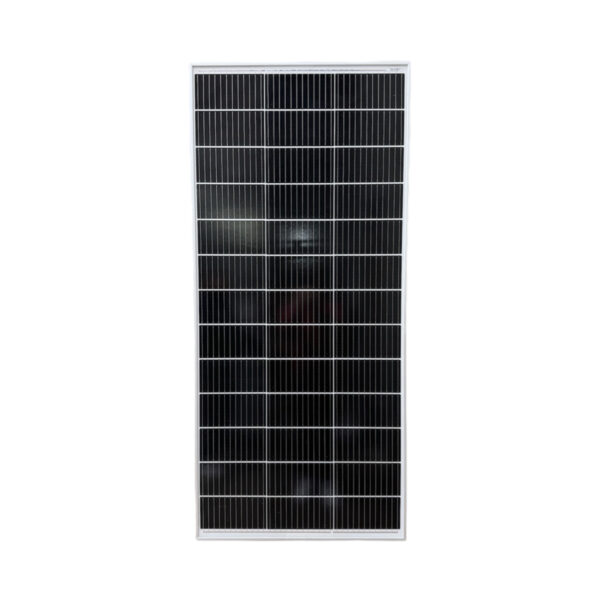

CÓDIGO AS-8M13-200W
ESECIFICACIONES:
Nominal Power (Pmax) : 200W
Open Circuit Voltage (VOC) 26,82V
Short Circuit Current (ISC) : 9,21A
Voltage at Nominal Power (Vmp) : 22,96V
Current at Nominal Power (Imp) : 8,71A
Module Efficiency (%) : 19,16
Cell type: Monocrystalline 210x104mm
Number of cells: 39 (3×11)
Module dimensions: 1480x670x35mm
Weight: 11kg
Front cover: 3.2mm tempered glass with AR coating
Frame: Anodized aluminum alloy
Junction box: IP65
Cable: 4mm2 ; 900mm
Connector: MC4 or MC4 compatible
Nominal Operating Cell Temperature(NOCT): 45 +- 2
TemperatureCoefficients of Pmax: -0,44%/C
TemperatureCoefficients of VOC: -0,34%/C
TemperatureCoefficients of ISC: 0,055%/C
Equipo CLASS A , Mejor Calidad
Garantizada por 30 AÑOS
CERTIFICACIONES:
IEC61215, IEC61730, IEC62716, IEC61701, UL1703, CE, MCS, CEC, Israel
Electric, Kemco
ISO9001: 2008: Quality management system
ISO14001: 2004: Environmental management system
OHSAS18001: 2007 Occupational health and safety management system
